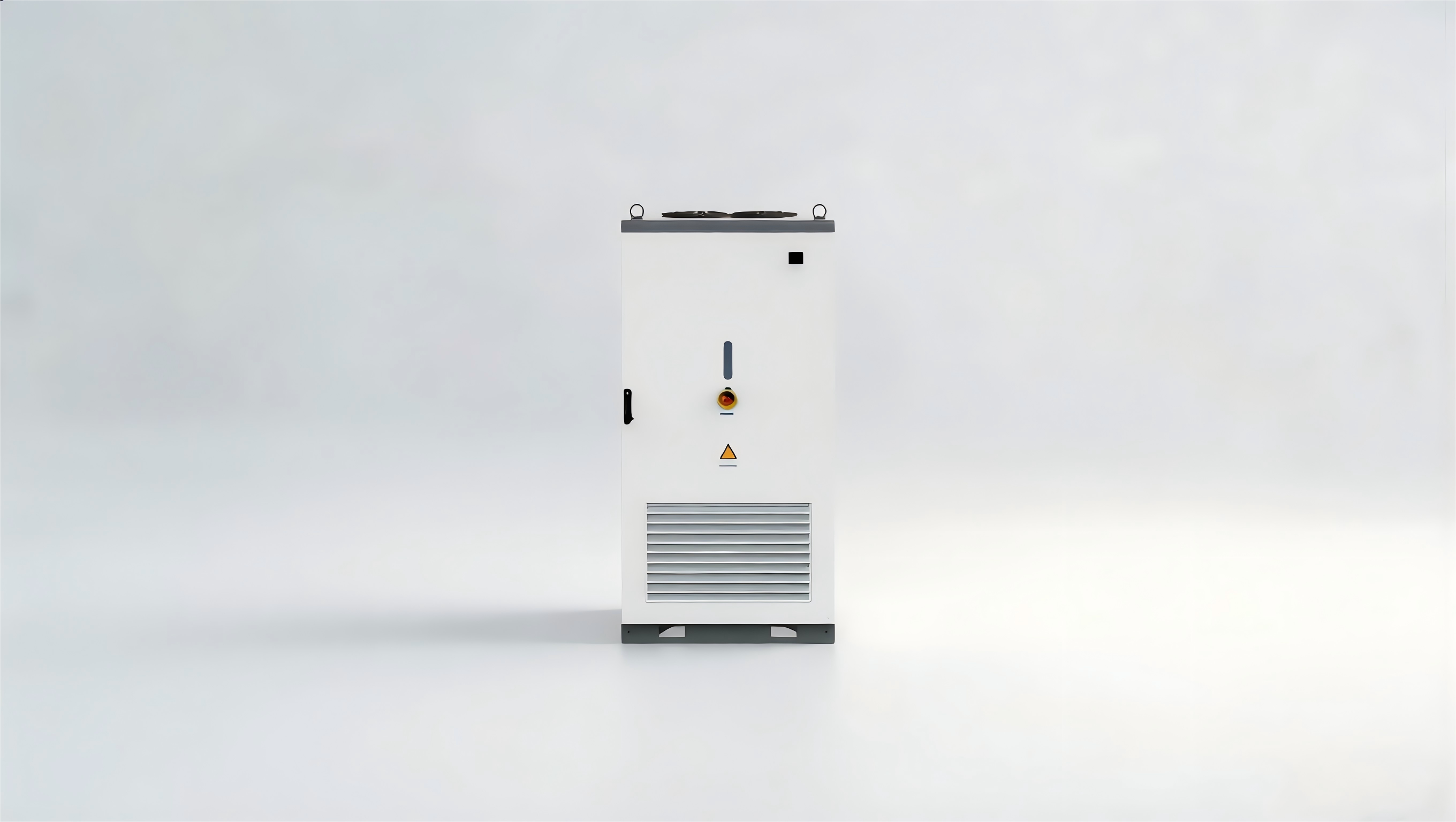

UGOODPOWER 125kW / 260kWh

工商业智慧储能一体机 Commercial & Industrial
Energy Storage System 液冷 · 高效 · 安全 · 智能Liquid Cooling · High Efficiency · Safe · Smart

新一代液冷工商业储能解决方案，集电池储能、储能变流器、能量管理系统、液冷温控系统于一体，为工商业用户提供高效、安全、智能的能源管理服务。 Next-gen liquid-cooled commercial & industrial energy storage solution — integrating battery storage, PCS, EMS and liquid-cooled thermal management.

液冷温控Liquid Cooling IP54防护IP54 Rated 一体化设计All-in-One

技术规格Specifications 联系我们Contact Us

核心参数Key Specifications

高性能液冷工商业储能一体机核心性能指标High-performance liquid-cooled C&I energy storage key metrics

125kW

额定功率Rated Power

最大充放电功率Max charge/discharge

260kWh

电池容量Battery Capacity

磷酸铁锂电池系统LFP battery system

90%+

循环效率Round-trip Efficiency

系统往返效率System RTE

220+ kWh/m²

能量密度Energy Density

单位面积能量密度High space utilization

6000+

循环寿命Cycle Life

25°C下循环次数Cycles @ 25°C

IP54

防护等级Protection

户外级防尘防水Outdoor rated

核心优势Core Advantages

六大核心优势，全方位保障储能系统高效安全运行Six core advantages ensuring efficient and safe operation

液冷温控Liquid Cooling

智能液冷热管理系统，将电芯温差控制在3°C以内，有效延长电池寿命，系统循环寿命超6000次。Intelligent liquid cooling keeps cell temperature difference within 3°C, extending battery life to 6000+ cycles.

极致安全Ultimate Safety

电芯级监控、Pack级消防、三级电气防护，IP54防护等级，气溶胶消防系统，全方位安全保障。Cell-level monitoring, Pack-level fire suppression, triple electrical protection with aerosol fire system.

智能管理Smart EMS

集成智能能量管理系统（EMS），支持远程监控、智能调度、故障诊断与OTA升级，让运维更简单。Integrated EMS with remote monitoring, smart dispatch, fault diagnosis and OTA updates.

高效转换High Efficiency

三电平拓扑+高效液冷散热，系统综合效率超90%，PCS最大效率达98.5%，降低运营成本。Three-level topology with high-efficiency cooling achieves 90%+ system efficiency, 98.5% max PCS efficiency.

灵活扩容Scalable

模块化设计支持多机并联，可根据用户需求灵活扩容，最大支持MW级储能系统建设。Modular design supports parallel connection for MW-scale energy storage systems.

峰谷套利Peak Shaving

支持峰谷电价套利、需量管理、备用电源等多种运营模式，帮助用户降低用电成本。Peak-valley arbitrage, demand management, and backup power for reduced electricity costs.

系统架构System Overview

集成六大子系统的一体化储能解决方案Integrated six-subsystem all-in-one energy storage solution

集成六大子系统Six Integrated Subsystems

电池系统、BMS、PCS、EMS、液冷温控、消防系统高度集成，出厂预调试，现场即插即用。Battery, BMS, PCS, EMS, liquid cooling, and fire suppression — factory pre-commissioned, plug-and-play on site.

液冷温控Liquid Cooling

气溶胶消防Aerosol Fire

智能EMSSmart EMS

PCS

应用场景Applications

广泛应用于工商业领域的多种储能场景Widely used in commercial and industrial energy storage scenarios

峰谷套利Peak Shaving

利用峰谷电价差进行充放电，降低企业用电成本。Charge at low prices, discharge at peak rates.

需量管理Demand Mgmt

平抑用电负荷峰值，减少基本电费支出。Reduce peak demand and lower electricity bills.

备用电源Backup Power

电网故障时提供不间断供电，保障生产。Uninterrupted power supply during grid failure.

光储融合Solar+Storage

配合光伏发电，提高新能源自用率。Combine with solar PV for higher self-consumption.

技术规格Technical Specifications

125kW/260kWh 工商业储能一体机详细参数Detailed specifications of 125kW/260kWh C&I ESS

额定功率Rated Power125 kW

电池容量Battery Capacity260 kWh

电池类型Battery Type磷酸铁锂 (LFP)LFP

直流电压范围DC Voltage Range600~850V

额定充放电电流Rated Current175A

系统效率System Efficiency≥90%

循环寿命Cycle Life≥6000 @25°C

日历寿命Calendar Life15 年years

防护等级ProtectionIP54

运行温度Operating Temp-20°C ~ +50°C

相对湿度Relative Humidity0~95% 无冷凝Non-condensing

海拔高度Altitude≤3000m

冷却方式Cooling智能液冷Liquid Cooling

温控精度Temp Precision±3°C

消防系统Fire SuppressionPack级气溶胶Pack-level Aerosol

隔离变压器Isolation内置Integrated

通讯接口CommunicationRS485 / Ethernet

尺寸 (W×D×H)Dimensions1175×1100×2300mm

设备重量Weight~2500 kg

安装方式Installation户外落地Outdoor Floor

能量密度Energy Density≥220 kWh/m²

噪音水平Noise Level≤65 dB(A) @1m

开启您的智慧储能之旅Start Your Smart Energy Storage Journey

联系我们的专业团队，获取定制化的工商业储能解决方案与详细产品资料。Contact our professional team for customized C&I energy storage solutions and detailed product information.

邮件咨询Email Us 下载彩页Download Brochure
